Punteadora ACME

Descripción

Punteadora

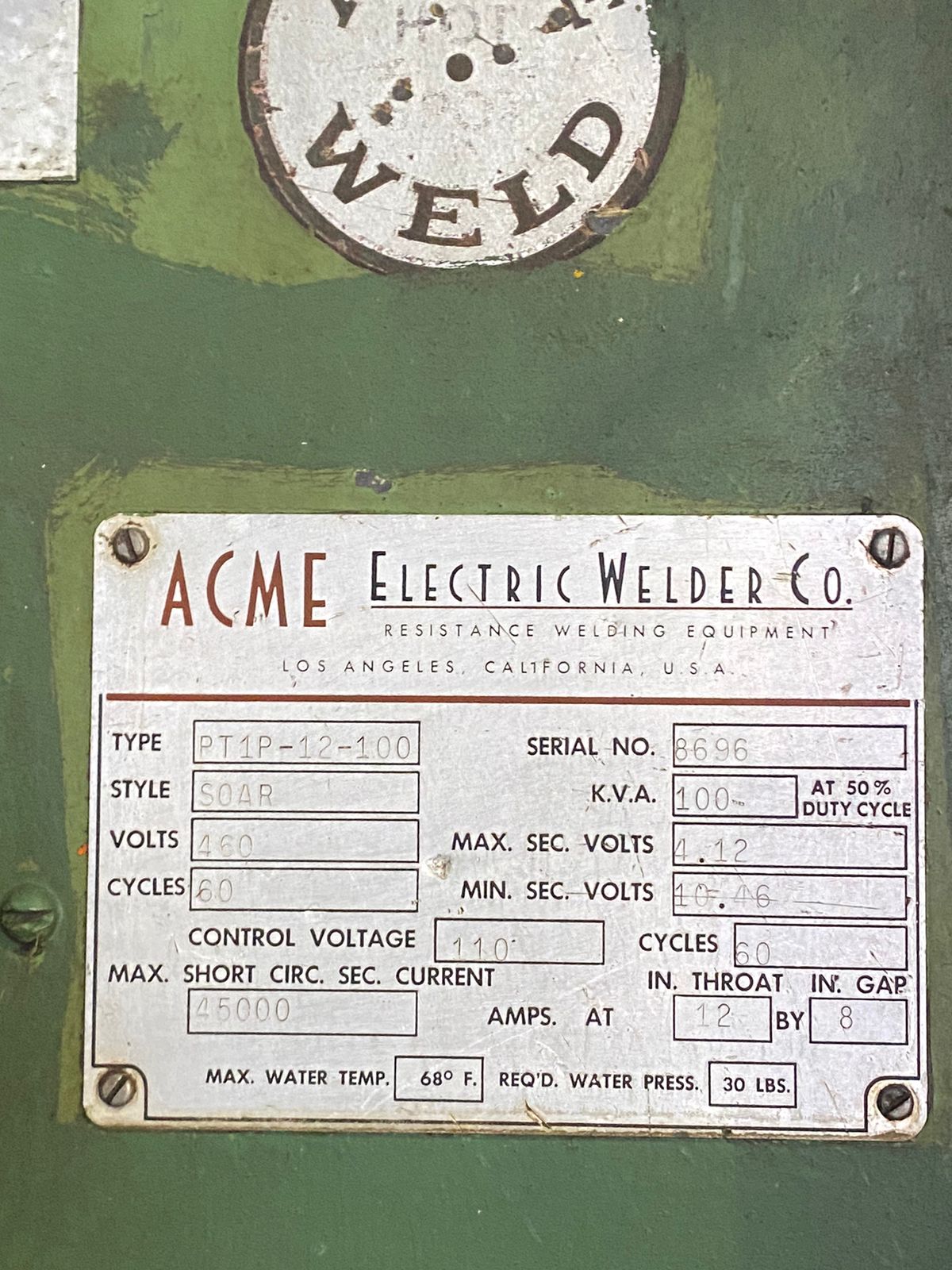

Marca ACME Electric Welder Co.

• TYPE: PT1P-12-100
• STYLE: SOAR
• VOLTS: 460
• CYCLES: 60
• SERIAL NO. 8696
• K.V.A. 100
• MAX. SEC. VOLTS. 4.12
• MIN. SEC. VOLTS. 10.46
• CONTROL VOLTAGE. 110
• CYCLES. 60
• MAX. SHORT CIRC. SEC. CURRENT. 45000
• AMPS. AT IN THROAT 12 BY IN. GAP 8
• MAX. WATER TEMP. 68°F
• REQD. WATER PRESS. 30 LBS
