GRG043-Prensa Hidraulica K.R Wilson 30 toneladas

FOLIO: HT01257

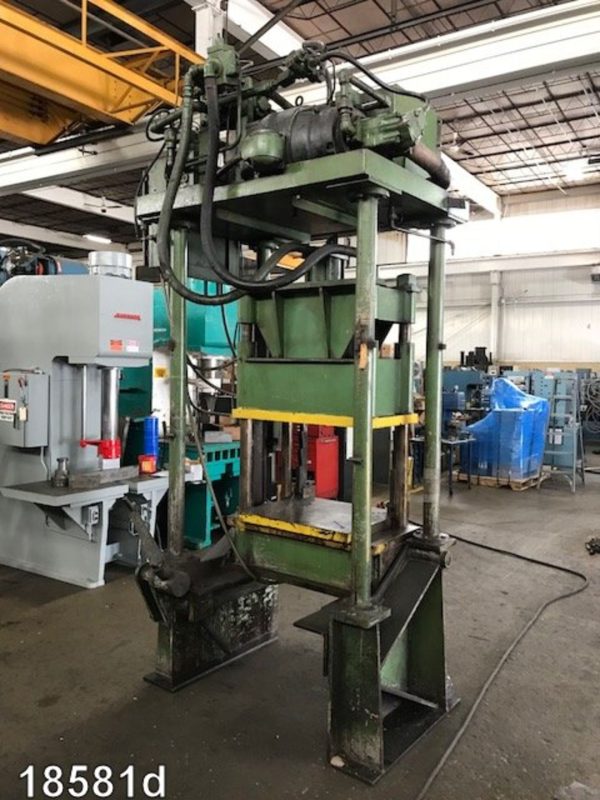

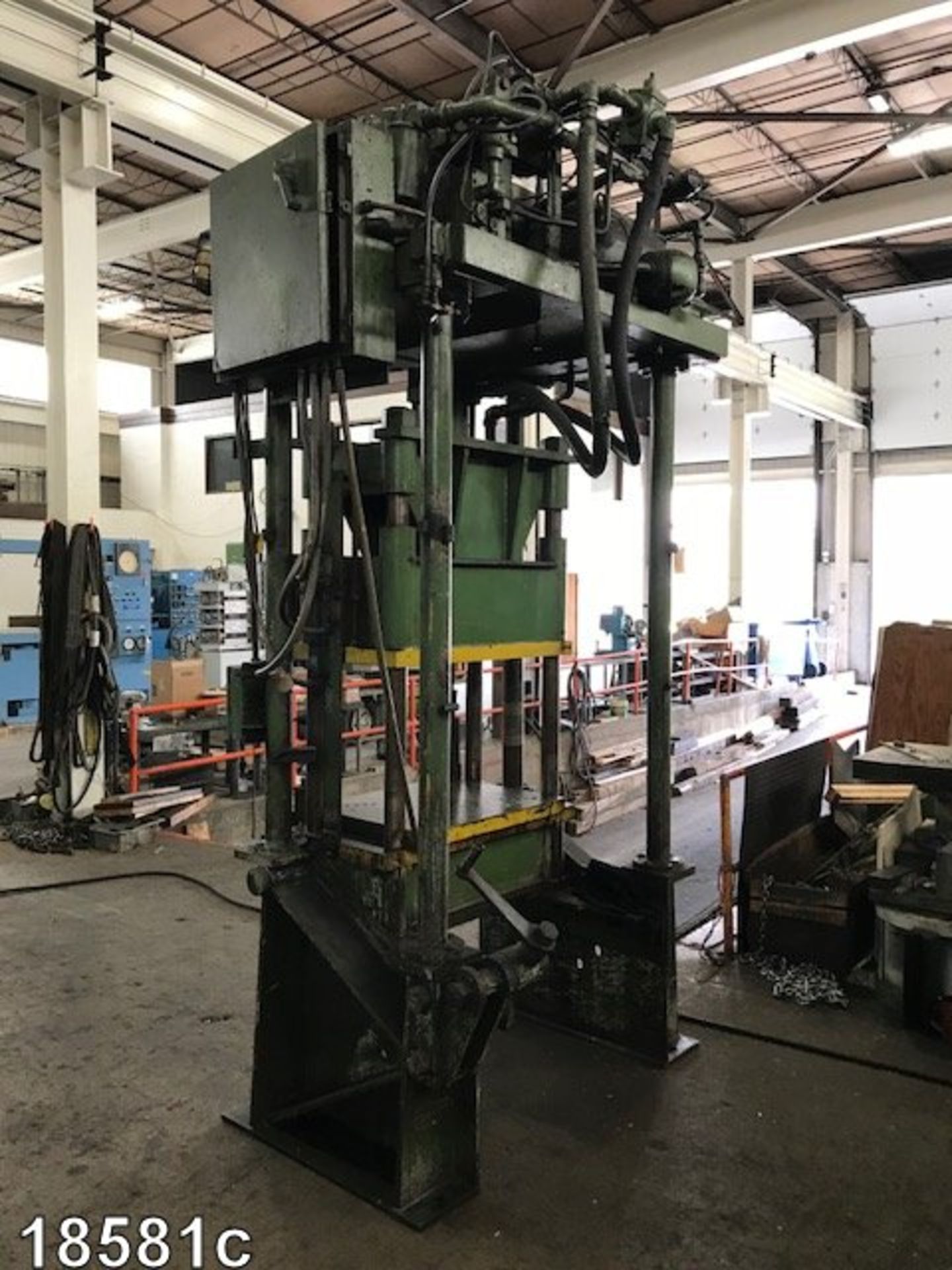

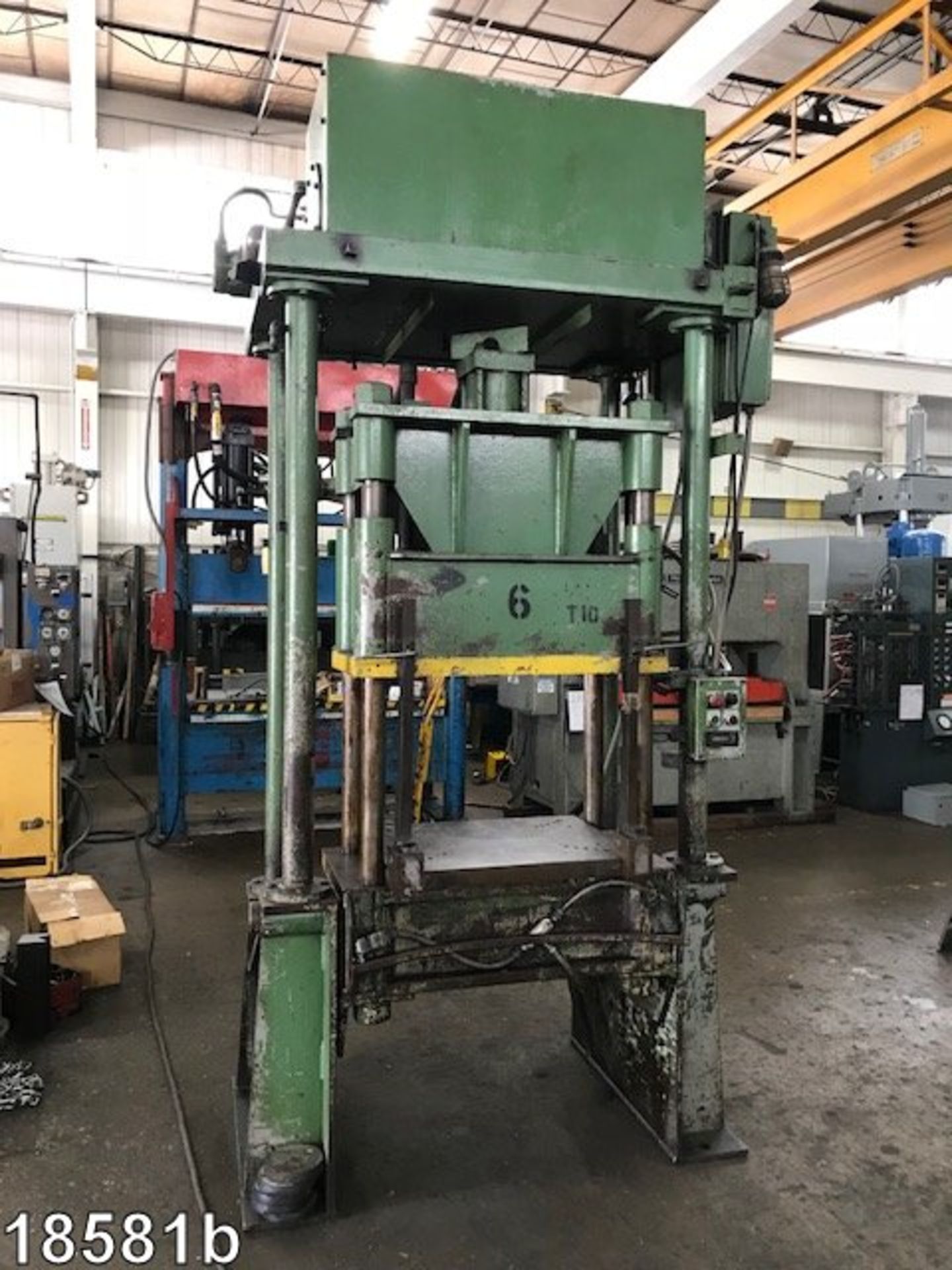

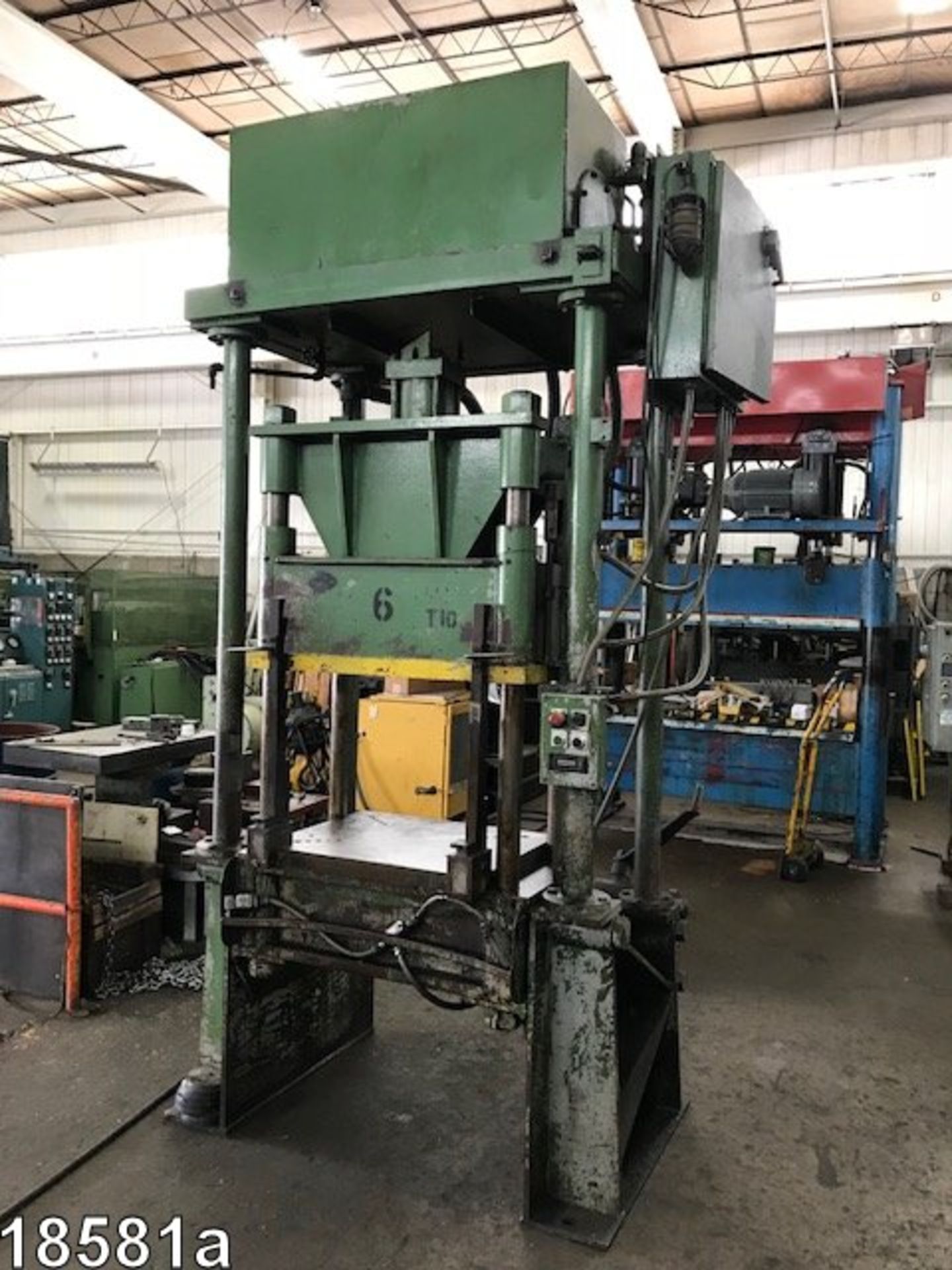

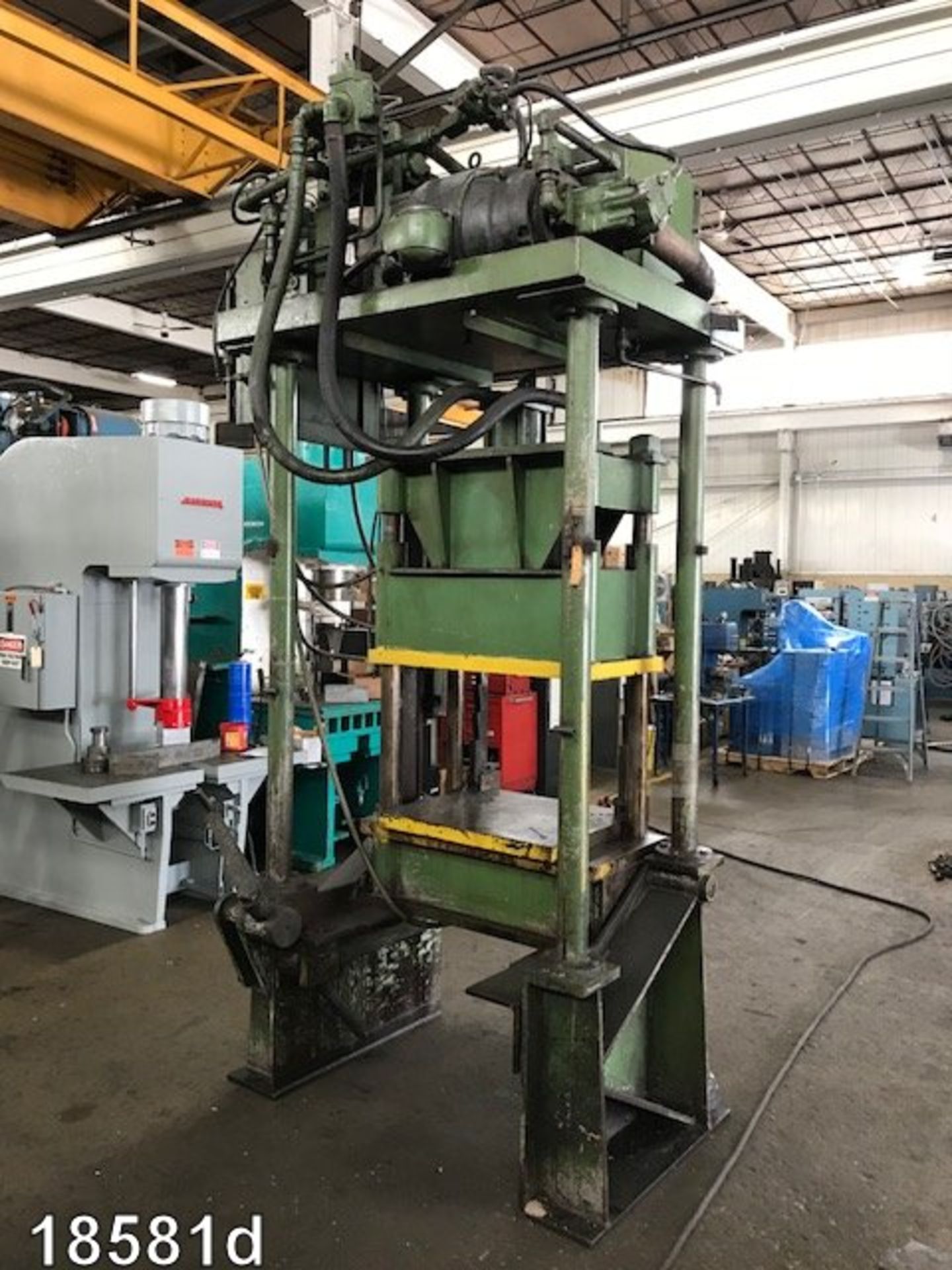

K.R. WILSON 30 TON HYDRAULIC TRIM PRESS S/N N/A 4 Post Downstroke Type , Floor Standing – Inclinable, Distance Between 2.75″ Dia. Posts: 30″ L-R x 12.75″ F-B, Area of Bed (Nominal): 30″ L-R x 20″ F-B, Overall Dimensions of Bed: 40″ L-R x 20″ F-B, Bed Bolster: 30″ L-R x 24″ F-B x 2″ Thick, Area of Slide (Nominal): 30″ L-R x 20″ F-B, Overall Dimensions of Slide: 37.75″ L-R x 20″ F-B, Stroke of Fully Guided Slide: 0 – 18″ Maximum, Daylight Opening (Total): 26.25″ Maximum, Daylight Opening Over Bolster: 24.25″ Maximum, Main Ram Diameter: 6″/5.5″ @ 2122 PSI – 30 Tons, Floor to Top of Bed: 36″ Maximum, Power Unit (Top of Press): Vickers Model 3525V30A141AA10, Fixed Volume Double Vane Pump,, 30 GPM & 14 GPM @ 2500 PSI, Driven by 15 HP 1200 RPM, 240/480/3/60 Motor, Speeds Approx.: 425″/Min. Closing, 80″/Min. Pressing to 30 Tons, 720″/Min. Return, Controls: Pushbutton Operation w/Stroke &, Pressure Control, Dual Safety Hand Levers, Selector Switch For Manual or, Semi-Automatic Operation, Weight approx. 7500

📍INDUSTRIALES 104, Col. INDUSTRIAL DEL NORTE, CP: 65500, Salinas Victoria, Nuevo León, México.
🚛 ENVIOS A TODO EL PAIS.
📱Cel. 81 8021 5443
