GRG045-Prensa Hidraulica Elmes 50 toneladas

FOLIO: HT01261

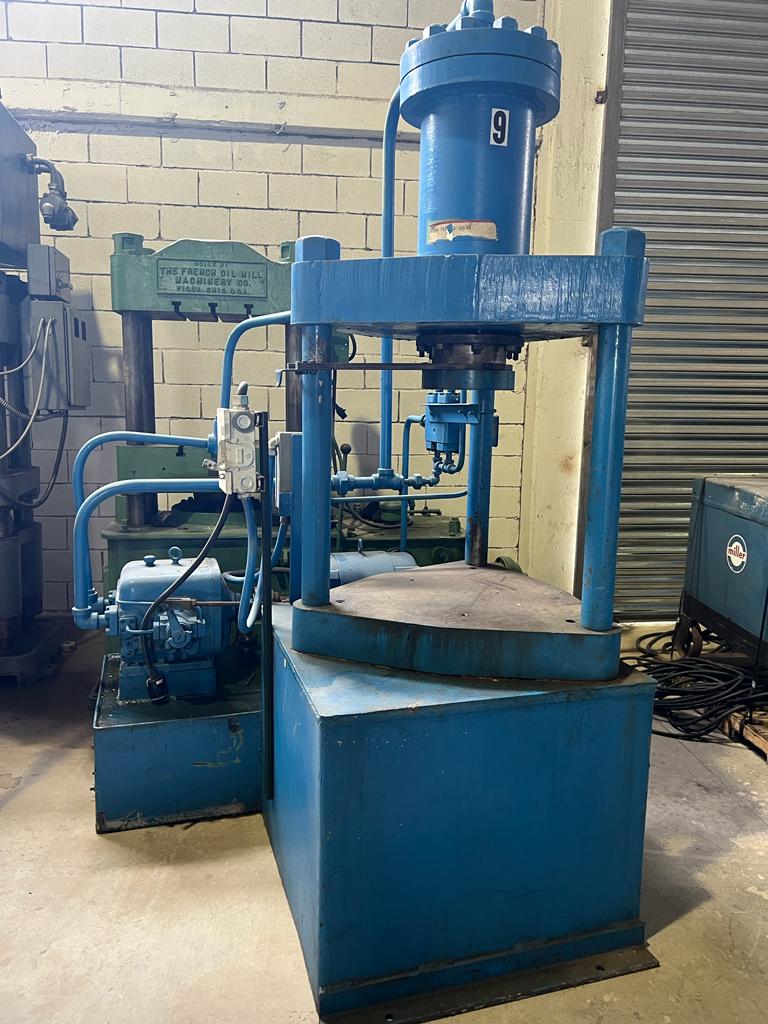

ELMES 50 TON (apPROX) HYDRAULIC PRESS S/N J2227 3 post downstroke type , Floor standing, Distance between 3″ dia. posts: 26″ L-R x 26″ F-B, Area of bed (nominal): Approx. 20″ L-R x 30″ F-B, Stroke of guided slide: Approx. 0 – 12″ maximum, Daylight opening (total): 24″ maximum, Main ram diameter: Approx. 10″/8″ @ 1275 PSI – 50 tons, Floor to top of bed: 33″, Power unit: Oilgear model DH1211 hydraulic pump, Driven by 10 HP 1160 RPM 220/440/3/60, motor, Controls: Pushbutton operation with stroke &, pressure control, Operator hand lever, Pressure gauge, Weight approx. 6,000
