GRG050-Prensa Hidraulica Bradley Turton 150 Toneladas

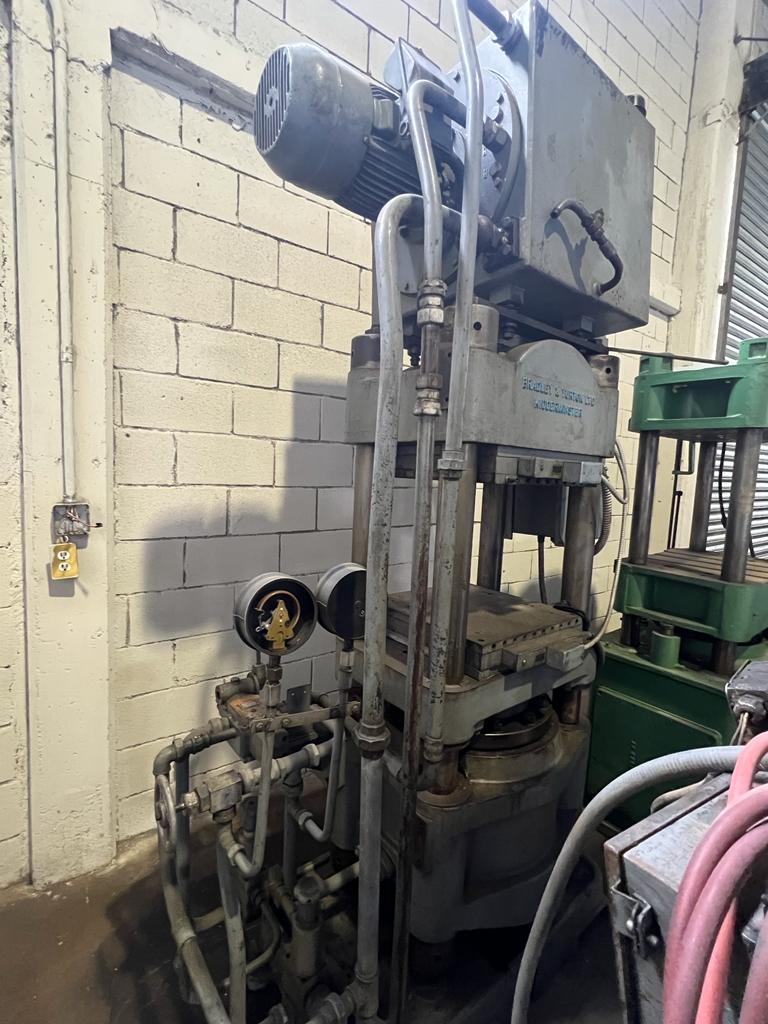

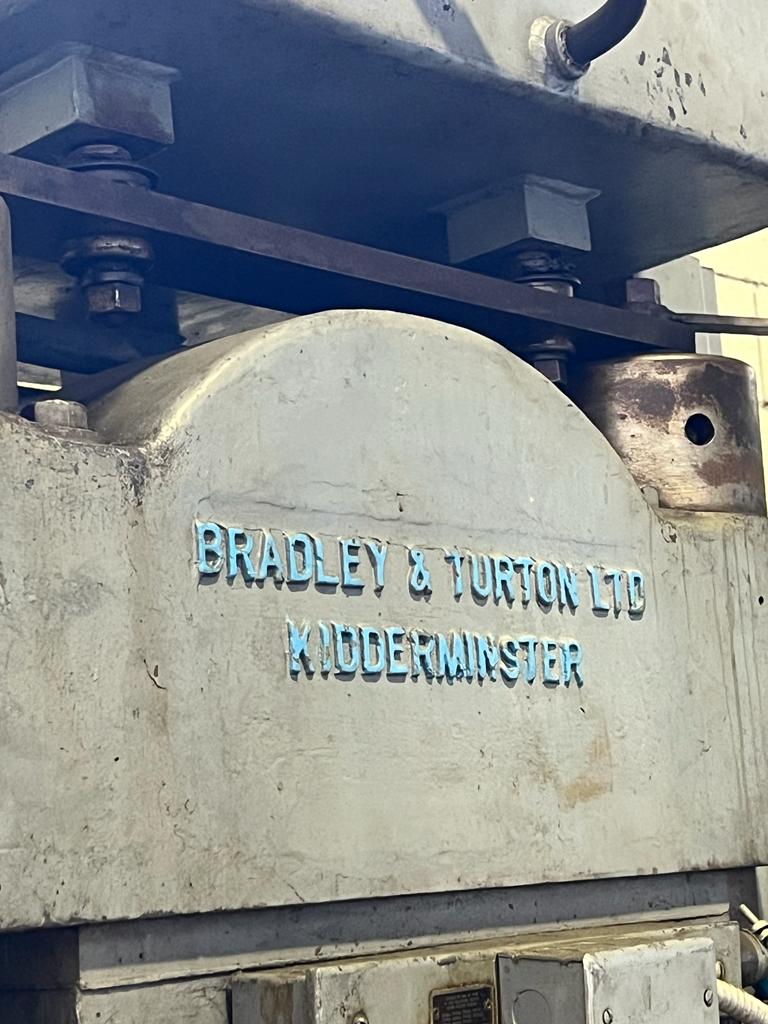

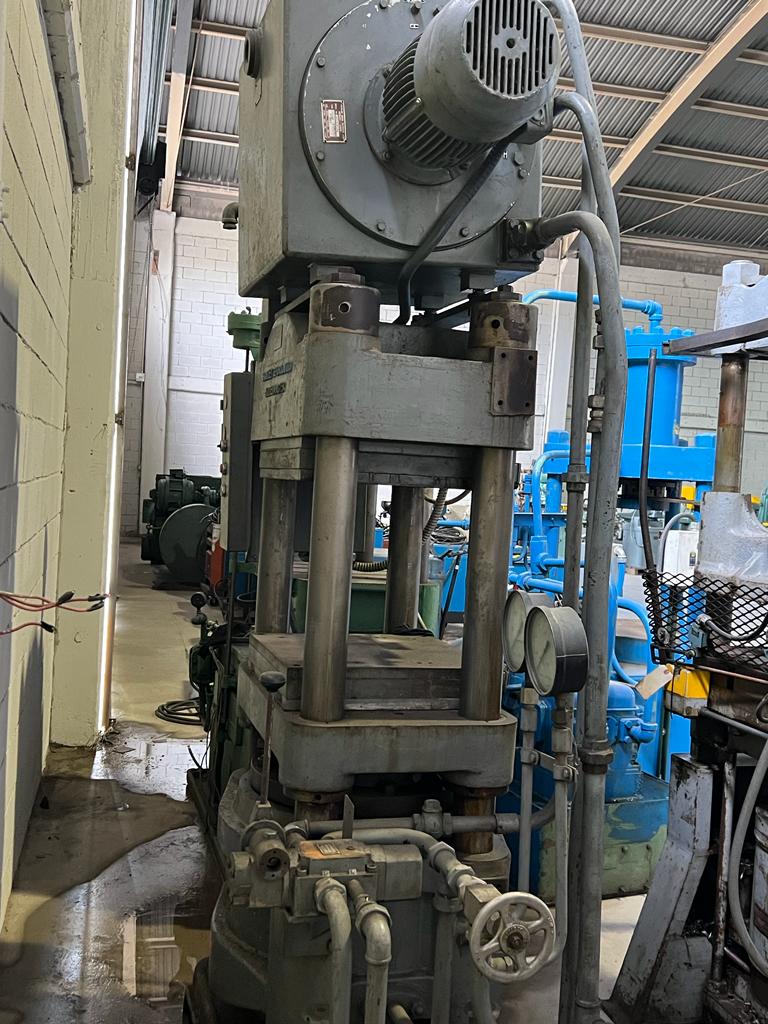

BRADLEY & TURTON Model 204/150/SC 150 TON UPSTROKE SELF CONTAINED HYDRAULIC MOLDING &, LAMINATING PRESS S/N 8277 4 Post Type – Floor Standing, Distance Between 3.75″ Dia. Posts: 20.75″ L-R x 10.75″ F-B, Platen Area (Nominal): 20.75″ L-R x 21″ F-B, Overall Dimensions of Platen: 31″ L-R x 21″ F-B, Stroke of Fully Guided Platen: 0 – 12″ Maximum, Daylight Opening (Total): 24″ Maximum, Daylight Opening Between Hot Plates: 16.5″ Maximum, Hot Plates (2): 20″ L-R x 20″ F-B x 1.75″ Thick, (Electrically Heated to Approx., 600° F.), Insulation (2): 20″ L-R x 20″ F-B x 1″ Thick, Main Ram Diameter: 14″ @ 1950 PSI – 150 Tons, Floor to Top of Moving Platen: 39″, Power Unit (Top of Press): Approx. 7.5 HP Motor, Driving Submerged Hydraulic Pump, Speeds Approx.: 20″/Min. Closing, 5″/Min. Pressing to 150 Tons, Gravity Return, Controls: Pushbutton Operation w/Pressure, Control, Single Hand Lever Operation, Pressure Gauges, Weight approx. 8500
